1. Auto-detection
2. Water-proof, Dust-proof and Acid&alkali resistant.
3. Vibration sensor can be applied to various production line.
4. Easy operation interface with meter.
5. With meter easily to manage the production line by setting the upper and lower vibration alarm limits.

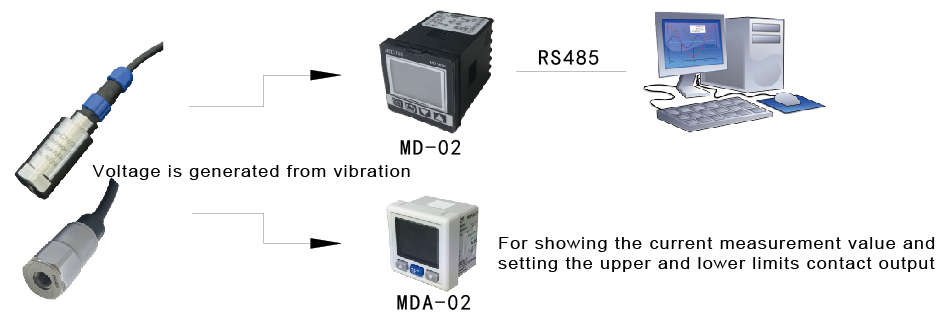

6. With MD-02 or DCS-01 can support Modbus RTU, connect with PC or PLC to collect and analyze data.

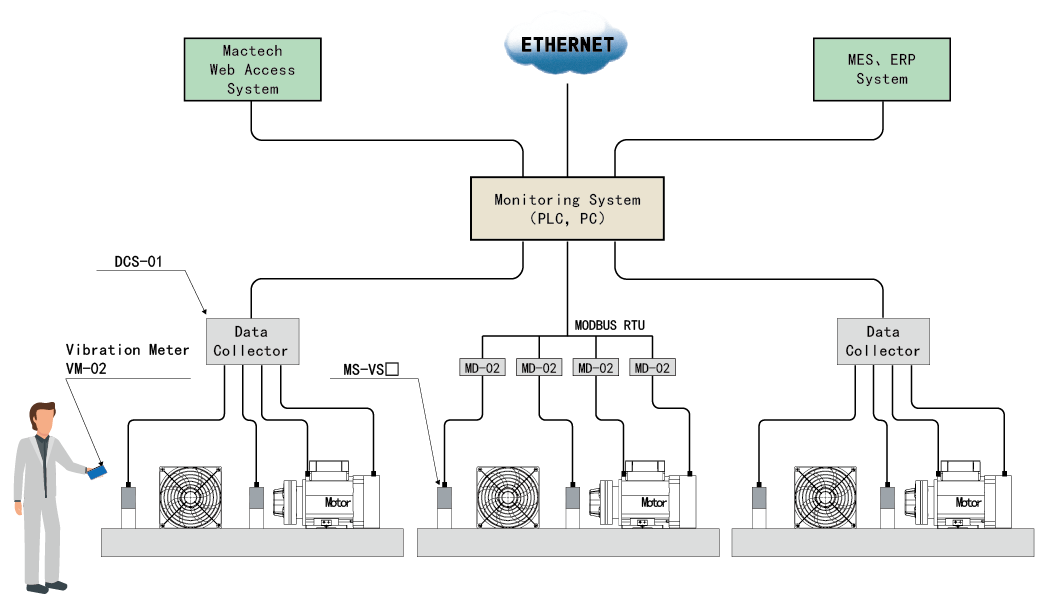

7. Vibration Monitoring System Integration.
|
Items |
Specifications | ||||
| Model | MS-VS1 | MS-VS2 | MS-VS3 | ||
| Input Power | DC 9～28V | ||||
| Style | Velocity | Acceleration | Displacement | ||
| Sensor Area |
10,50,400 mm/sec
|
100 m/s2 |
100 μm |
||
| Sensitivity |
20 mV／(mm/sec) |
0.01 m/s2 |
0.01 μm |
||
|
Frequency |
10～1K Hz |
10～2K Hz |
10～2K Hz |
||
|
Output mode |
DC 4～20 mA |
||||
|
Linear Distortion |
≦3% |
||||
|
Damping |
20 ms |
||||
|
Screw thread |
M8 |
||||
|
Ambient Temperature |
-30～85℃ (Indoor) |
||||
|
Ambient Humidity |
35～65%HR (No condensation) |
||||

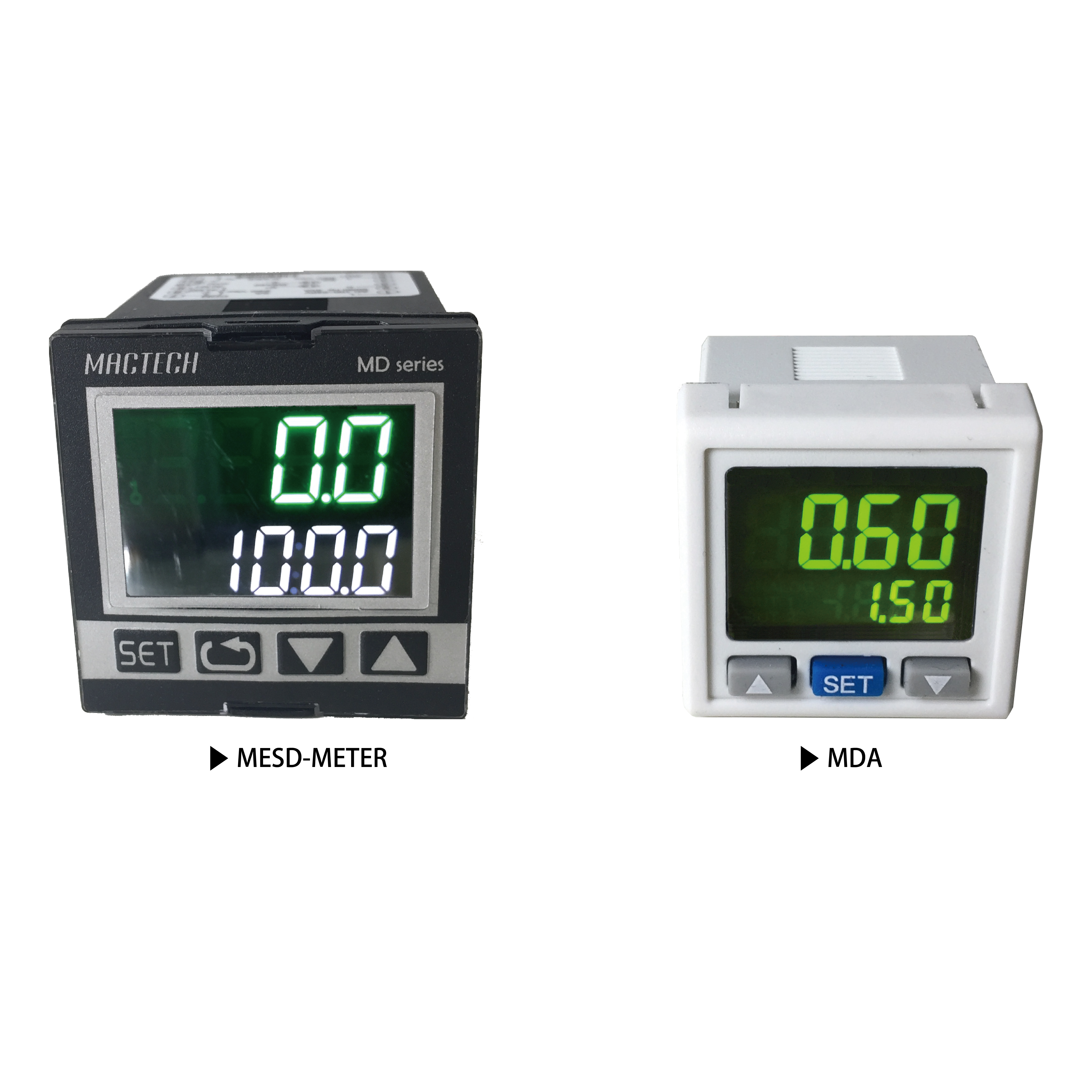

[ Meter with RS485 function ]
|
Items |
Specifications |
|
|
Model |
MESD-METER |
|
|
Static sensor |
Vibration sensor | |
|
Measuring range |
±1.999 / ±19.99 KV |
Max 400 mm/sec |
|
Period |
10 ms |
100 ms |
|
Protocol |
Modbus RTU (RS485) |
|
|
Format |
8-N-1 |
|
|
Transmission rate |
9600,19200,38400,57600 bps...Max 115200 bps (Default) |
|
|
Output mode |
Relay * 2 |
|
|
Display |
Color LCD panel |
|
|
Power / consumption |
AC 100～240V / 0.2VA |
|
|
(7-stages setting) |
- | |
|
Installed size |
48 x 48 mm (Standard type) |
|
|
Ambient temperature |
0～40℃ (Indoor) |
|
|
Ambient humidity |
35～65% RH (No condensation) |
|
[ Meter without RS485 function ]
|
Items |
Specifications |
|
|
Model |
MDA-01 |
MDA-02 |
|
Measurable range |
Max 100mm/sec |
|
| Period |
100, 250, 500, 1000 ms |
|
| Output mode |
±3% |
|
|
Transmission rate |
1, 5, 10, 50, 100, 200, 500, 1000, 3000, 5000ms |
|
|
Display |
Color LCD panel |
|
|
Power/Consumption |
DC 12~24V / 40mA Max |
|
|
Installed size |
30 x 30mm (Standard type) |
|
|
Ambient temperature |
0～40℃ (Indoor) |
|
|
Ambient humidity |
35～65%RH (No condensation) |
|
★Providing customized system integration, please contact us for further information.
